Folded Graphene Flakes Create Stronger, Tougher Macroscopic Films

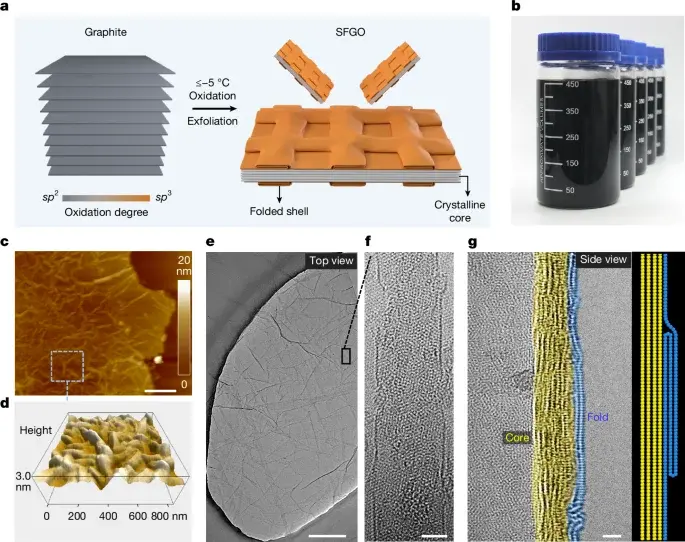

Researchers from Zhejiang University and Tsinghua University have developed a new method to create graphene films with significantly enhanced mechanical properties. By assembling surface-folded multilayer graphene oxide flakes into a 'fold-clasping' structure, they achieved a film with a strength of 2.9 GPa, toughness of 84.5 MJ/m³, and elastic strain of 5%. This approach overcomes previous limitations in scaling up the mechanical performance of two-dimensional materials, offering a viable path for lightweight structural components.
Key points
- A new strategy for preparing graphene films combines high strength, toughness, and elasticity through a modular assembly of surface-folded flakes.
- The resulting 'fold-clasping lamellar structure' enables a pull-to-push transition in force chain topology, improving stress transfer.
- The developed films achieve a strength of 2.9 GPa and a toughness of 84.5 MJ/m³, outperforming previous flat-sheet stacking methods.
- This work demonstrates that modulating the spatial conformation of individual 2D units can significantly enhance the macroscopic properties of the final material.
- The findings suggest potential applications for these films in lightweight structural components due to their superior mechanical performance.
Background
Previous research, as noted in our archive, has focused on improving the stacking order of flat two-dimensional sheets to enhance strength and toughness. While modulation of spatial conformation has yielded benchmark materials in other contexts, it remained elusive for 2D sheets until this recent study. This new work builds on earlier efforts in nacre-inspired composites and intercalation modulated plasticization, which previously achieved gigapascal strengths but lacked the combined elasticity and toughness seen in the new fold-clasping design.
Why it matters
This breakthrough addresses a critical challenge in materials science: translating the exceptional in-plane strength of individual graphene sheets into robust macroscopic films. By introducing a fold-clasping mechanism, the research provides a scalable method to achieve superior mechanical performance, potentially enabling the use of graphene-based materials in structural engineering where both strength and flexibility are required.
What to watch
Researchers will likely focus on scaling up the production of these fold-clasping graphene films and testing their durability in real-world structural applications. Further studies may explore how this modular design can be applied to other two-dimensional materials to create new classes of high-performance composites.
